Mid-Tower

V40

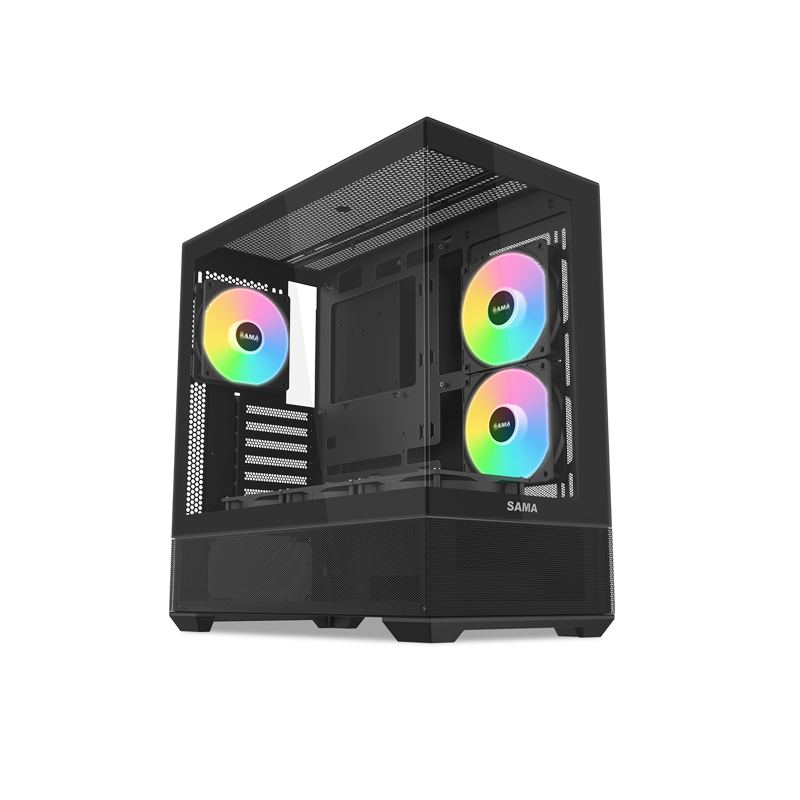

The SAMA V40 case boasts dual tempered glass panels, offering a stunning 270° panoramic view that beautifully displays the interior components of your build.
Color
  • #0a0a0a
  • #ffffff
Product Manual

SAMA V40

Boasts dual tempered glass panels, offering a stunning 270° panoramic view that beautifully displays the interior components of your build. Its compact design minimizes desktop footprint while still accommodating larger components, balancing space efficiency with functionality to suit both small and powerful setups.

AVAILABLE IN TWO COLORS

The SAMA V40 is available in two stylish color options.These choices allow the V40 to seamlessly complement a variety of personal styles, ensuring it fits effortlesslyinto your unique setup.

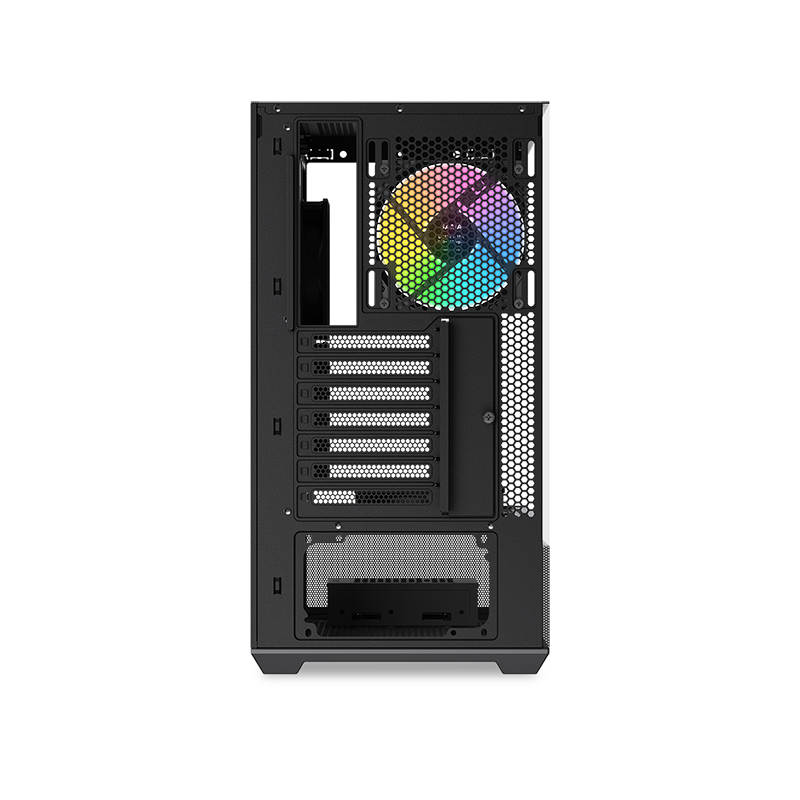

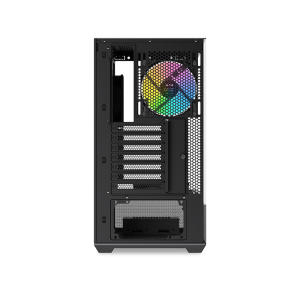

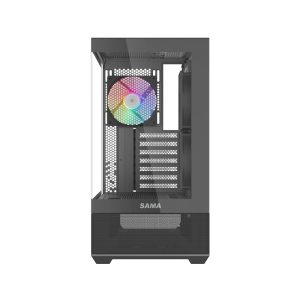

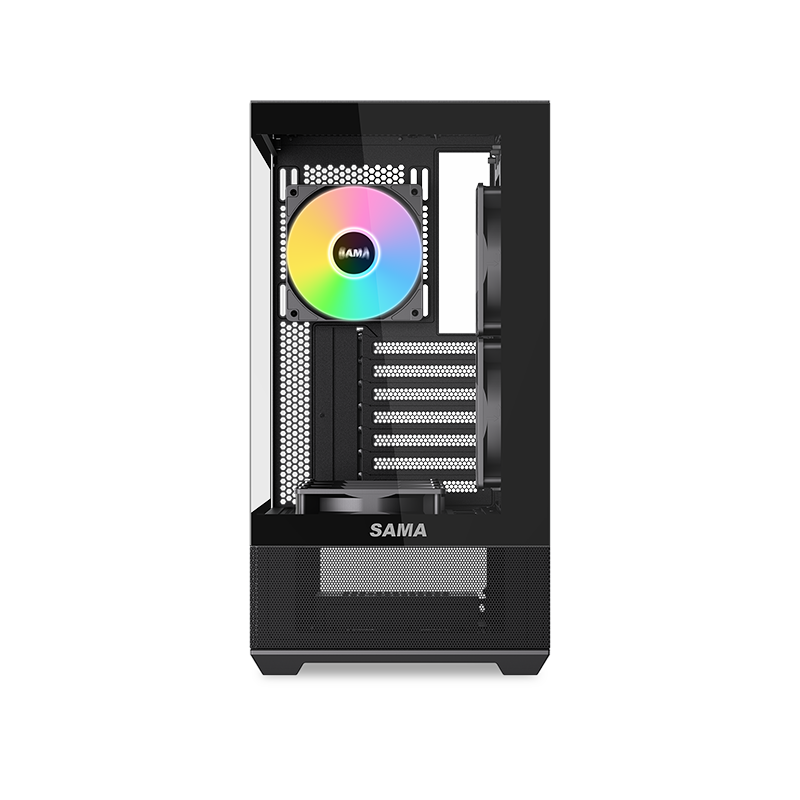

BLACK Classic Black,Sleek Timeless Look

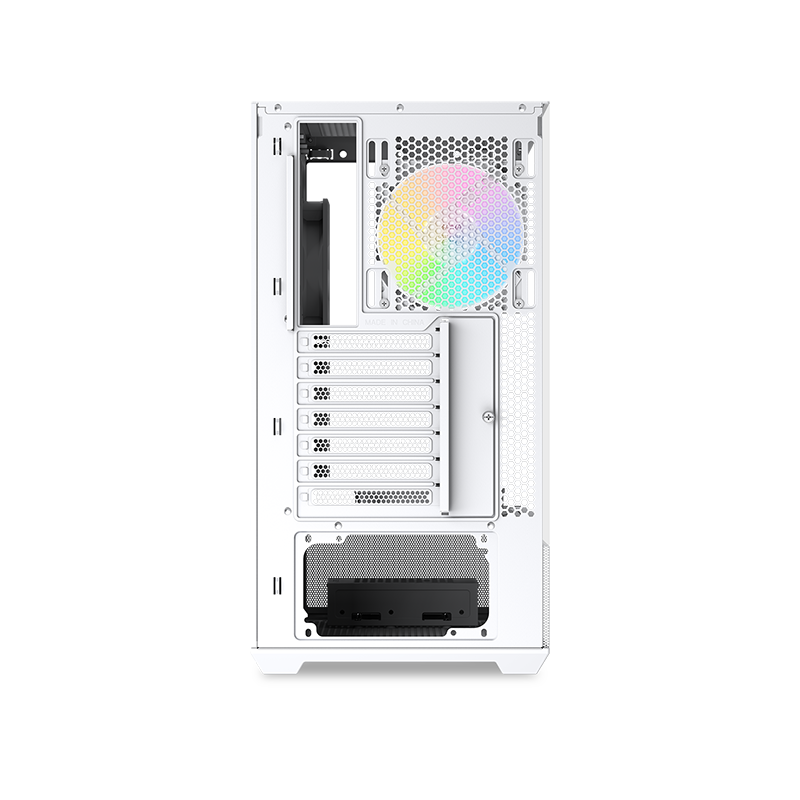

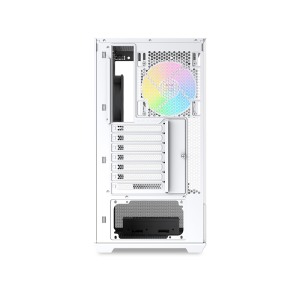

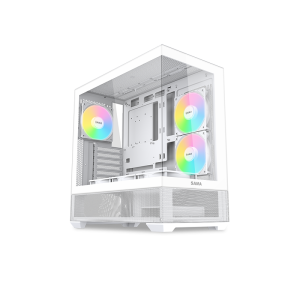

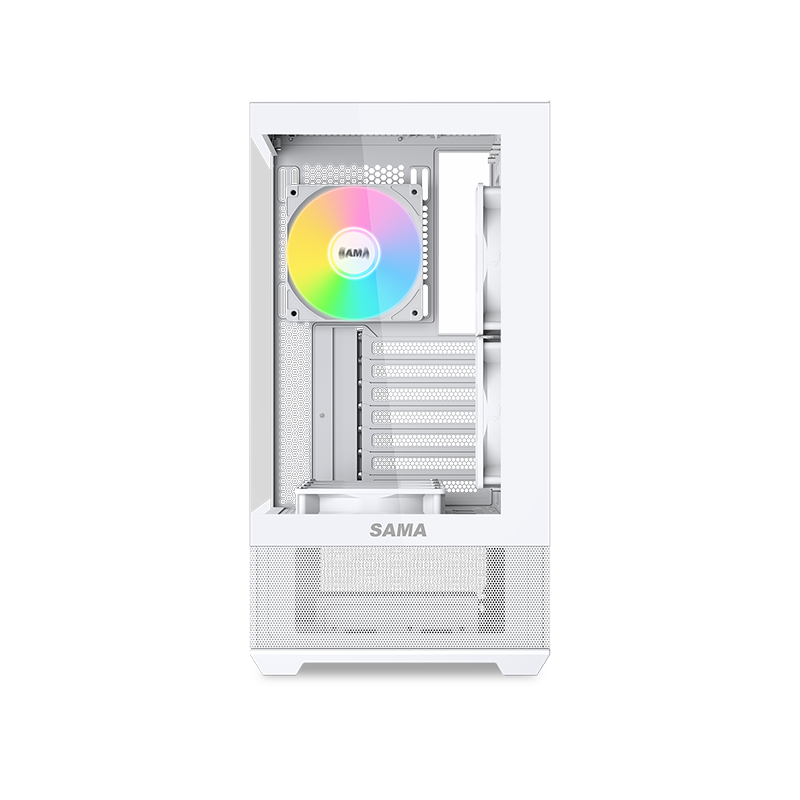

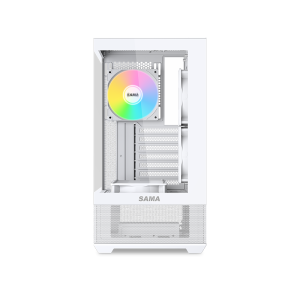

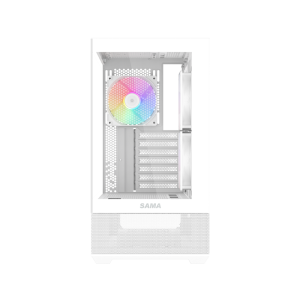

WHITE Elegant White ,Clean Modern Aesthetic

FLAWLESS VIEW

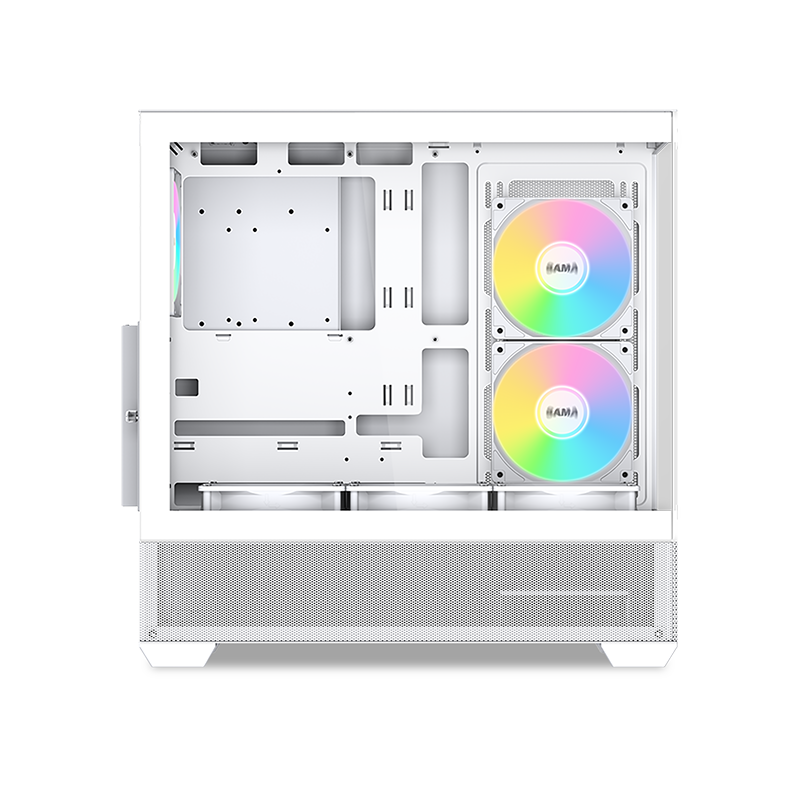

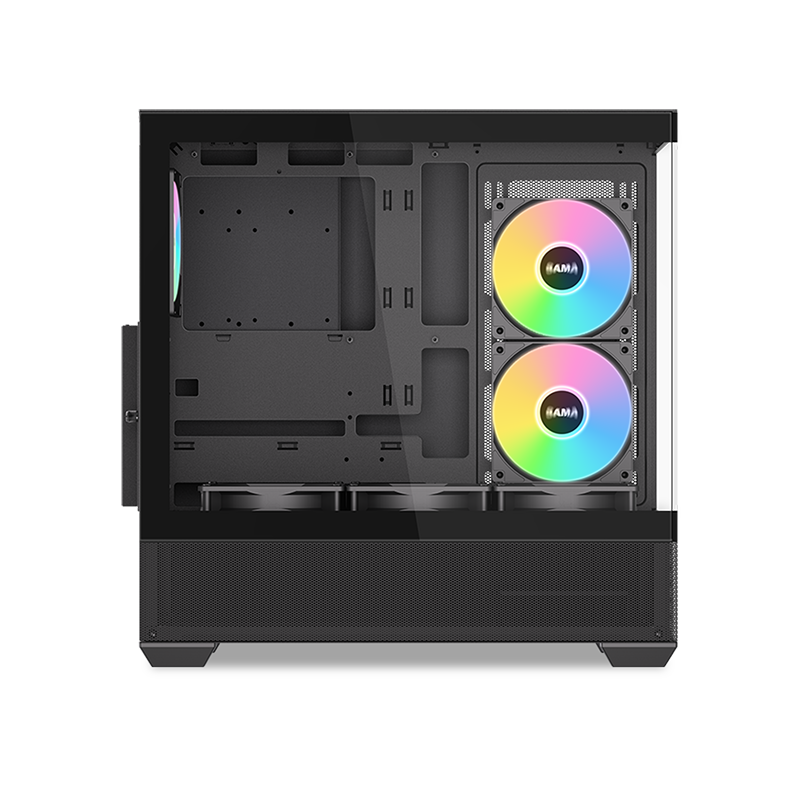

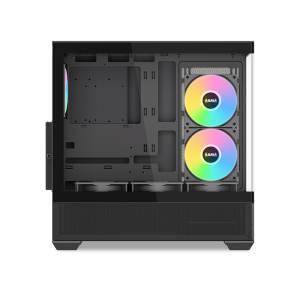

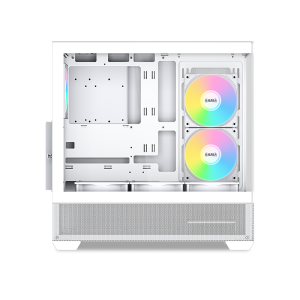

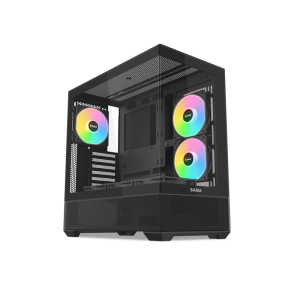

The SAMA V40’s design features two high-transparency tempered glass panels, creating a flawless 270° view that seamlessly showcases your build.

This layout provides an unobstructed look at your components while maintaining a stable and durable structure.

VERSATILE COMPATIBILITY

With a compact layout, the V40 case offers versatile motherboard compatibility, supporting ATX, MATX, and ITX form factors, as well as back-connect motherboards. This flexibility makes it an ideal choice for a wide range of builds, accommodating different system requirements with ease.

DUAL-CHAMBERED
DIFFERENTLY

Unlike the traditional left-right layout, the V40 introduces an innovative top-bottom dual-chamber design, providing a refreshing and modern look. This layout not only enhances the case's aesthetic appeal but also promotes vertical airflow, significantly improving cooling efficiency and optimizing overall thermal performance.

PRE-INSTALLED FANS

× 6

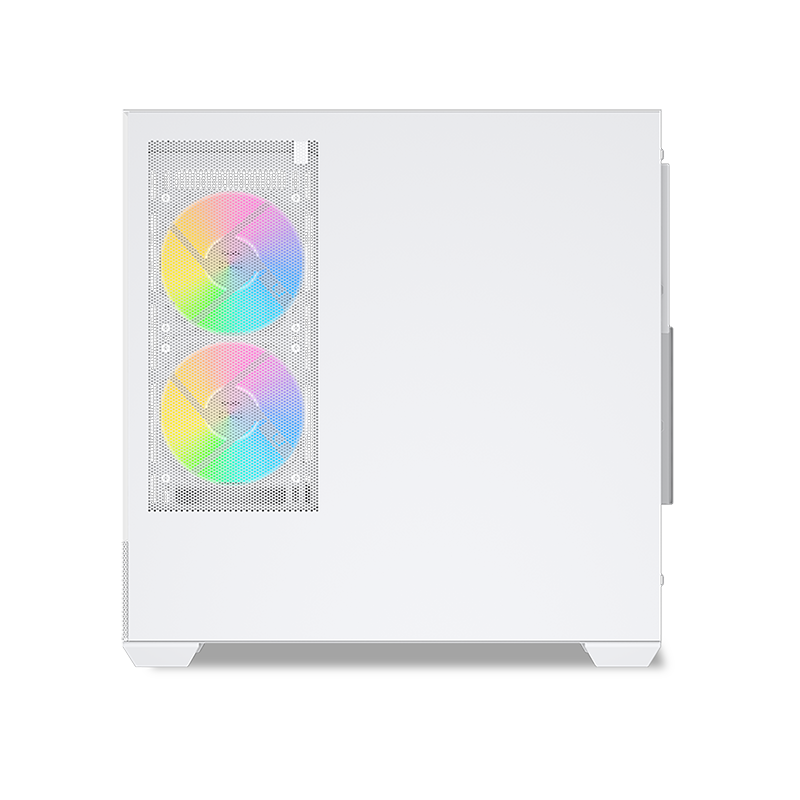

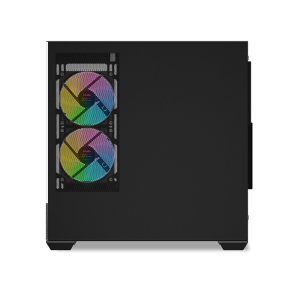

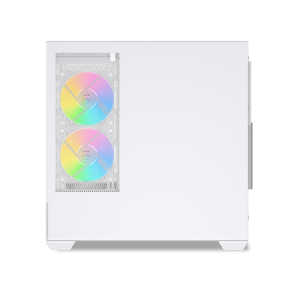

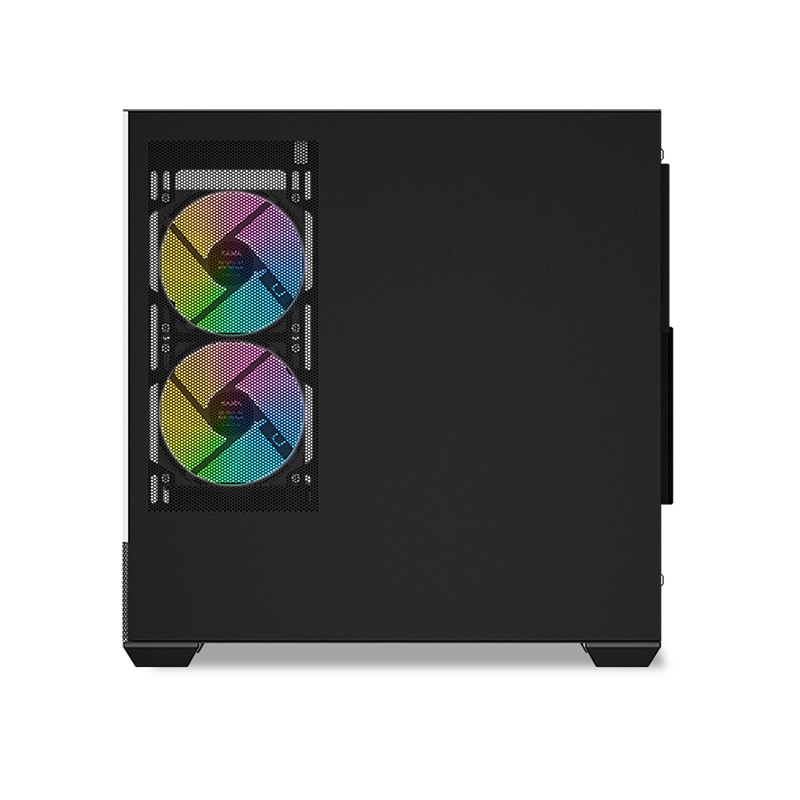

V40 comes pre-installed with six ARGB PWM fans: two on the side, three at the bottom, and one at the rear. This configuration delivers immediate cooling performance and impressive lighting effects, enhancing both functionality and aesthetics in your build.

OPTIMIZED COOLING PERFORMANCE

  • AIO:360/280/240mm
  • FAN:120mm×3/140mm×2
  • SIDE FAN:120mm×2/140mm×2
  • AIO:120mm
  • FAN:120mm×1/140mm×1
  • FAN:120mm×3 (PSU shroud)
The SAMA V40 case offers outstanding cooling compatibility, supporting up to 9 fans across the top, bottom, side, and rear panels to ensure maximum airflow. For water cooling enthusiasts, it can accommodate 360mm radiators on the top, providing exceptional thermal performance to meet the demands of high-powered systems and maintain optimal temperatures during intense use.
Specifications
Dimensions 453×235×450mm (L×W×H)
Materials SPCC, Tempered Glass, ABS
Motherboard Support ATX, M-ATX, ITX, Back-connect ATX/M-ATX
Expansion Slots 7
Max CPU Cooler Height 181mm
Max GPU Length 410mm
Power Supply Type ATX, 265mm
Fan Support Front N/A
Top 3×120mm / 2×140mm
Rear 1×140mm / 1×120mm
Bottom 3×120mm (PSU shroud)
Side 2×140mm / 2×120mm
Radiator Support Front N/A
Top 3×120mm / 2×140mm/2×120mm
Rear 120mm
Bottom N/A
Side N/A
Pre-Installed Fans Rear 1×120mm ARGB PWM fan
Bottom 3×120mm ARGB PWM reverse fans
Side 2×120mm ARGB PWM reverse fans
Front I/O Ports 1×USB 3.1 Type-C×1,
2×USB 3.0
3.5" Drive Bays 3
2.5" Drive Bays 0 + 3 combined with 3.5" mounts
